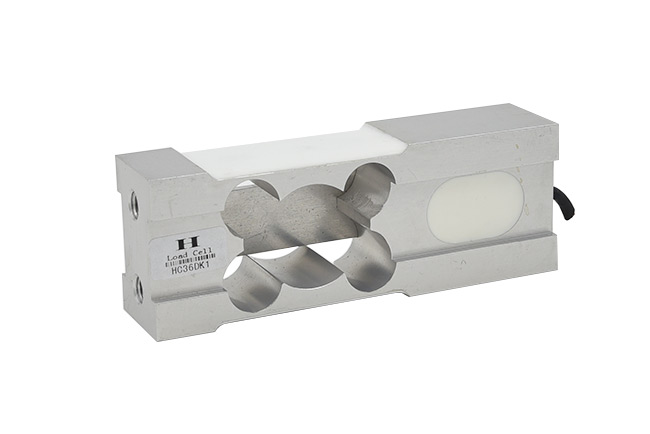

量程：3Kg,5Kg,8Kg,20Kg,30Kg,50Kg
適用于計價秤，計數秤以及其他電子稱重設備
特征：
通常精度可達到C3，5000分度值
角差修正
臺面最大尺寸250*350mm
IP66防護
| SPECIFICATIONS 技術參數 | ||||
| Full Scale Output 靈敏度輸出 | 2.0±10%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) | |
| Zerc Balance 零點輸出 | ±0.02mV/V | Reference Max.Platform Size 大秤臺尺寸 | 250*350mm | |
| Non-linearity 非線性 | <±0.017% | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ | |
| Repeatability 重復性 | <±0.017% | Nominal Temperature Range 工作溫度 | -10℃to40℃/14℉to104℉ | |
| Hysteresis Error 滯后 | <±0.017% | Safe Overload 安全過載 | 150% of full scale | |
| Creep in 30 min 30分鐘蠕變 | <±0.023% | <±0.023% | Breaking Overload 極限過載 | 200% of full scale |
| Input Resistance 輸入電阻 | 405Ω±10 | IP Rating 防護等級 | IP66 | |
| Outnput Resistance 輸出電阻 | 350Ω±3 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) | |
| Element Materia 材質 | Aluminum 鋁合金 | |||

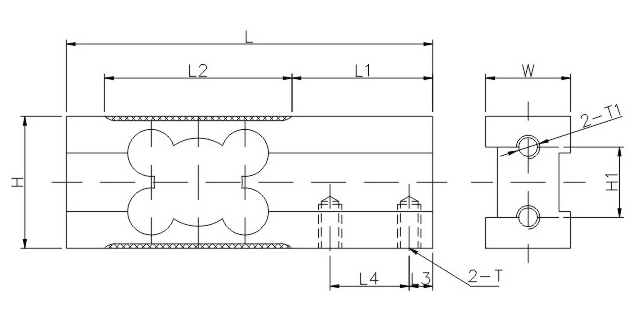

| DIMENSIONS 尺寸 | ||||||||||
RATE CAPACITY 量程 | L | L1 | L2 | L3 | L4 | W | H | H1 | T | T1 |
| kg/mm 50-300 | 125 | 48 | 64 | 8 | 27 | 29 | 45 | 24 | M8深16 | M8深16 |
| lb/inches(conversion of above dimensions 由以上尺寸轉換) | ||||||||||
| 110.2-661.4 | 4.92 | 1.89 | 2.52 | 0.31 | 1.06 | 1.14 | 1.77 | 0.94 | M8 DP 0.63 | M8 DP 0.63 |
