量程：1Kg,2Kg,3Kg,5Kg,10Kg,20Kg,30Kg
適用于吊秤，機械轉換秤，料斗秤以及其他稱重設備
特征：
符合OIML認證指標，分度值可高達5000
Ip67防護
輕鋁結構
可選項：-耐溫120℃［248°F ］，防雷-6線制
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output 靈敏度輸出 | 2.0±0.025%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±0.02mV/V | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Non-linearity 非線性 | <±0.017% | Nominal Temperature Range 工作溫度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重復性 | <±0.017% | ||
| Hysteresis Error 滯后 | <±0.017% | Safe Overload 安全過載 | 150% of full scale |
| Creep in 30 min 30分鐘蠕變 | <±0.02% | Breaking Overload 極限過載 | 200% of full scale |
| Input Resistance 輸入電阻 | 385Ω±25 | IP Rating 防護等級 | IP67 |
| Outnput Resistance 輸出電阻 | 350Ω±3 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材質 | Aluminum 鋁合金 | ||

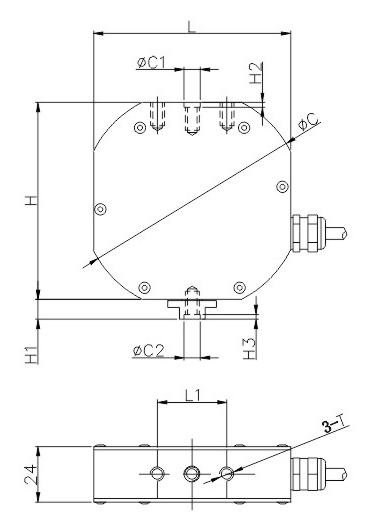

| DIMENSIONS 尺寸 | |||||||||||
RATE CAPACITY 量程 | C | C1 | C2 | L | L1 | W | H | H1 | H2 | H3 | T |
| kg/mm | |||||||||||
| 5...250 | 95 | 7 | 7 | 85 | 30 | 24 | 85 | 8.5 | 2 | 2 | M6深10 |
| lb/inches(conversion of above dimensions 由以上尺寸轉換) | |||||||||||
| 11.02...551.1 | 3.74 | 0.28 | 0.28 | 3.35 | 1.18 | 0.94 | 3.35 | 0.33 | 0.08 | 0.08 | M6 DP 0.39 |
